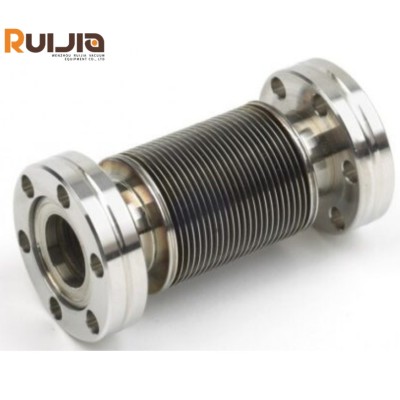

SS304/SS316L CF16 Vacuum edge weld bellows for vacuum system

Categories	CF Vacuum Bellows
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Bellows Type	SS304/SS316L CF16 Vacuum edge weld bellows
Material	SS304/SS316L
Standard	CF Standard
Size Range	CF16,CF40,CF63
Length	48.5mm,63mm,65mm,76mm or as customer request
Lifecycles	10000
FOB port	Shanghai Port，Tianjing Port，Ningbo Port
Update Time	Mar 12,2025

Contact Now

Favorites

Detail Information

SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios Feature

●Flexible Connection

Edge welded bellows are flexible connecting parts between different vacuum flanges or end fittings. They can be easily integrated into various setups.

● High - Flexibility Applications

These bellows, known for their great flexibility, are used in many applications.

● Functions in Vacuum and Low - Pressure

In vacuum systems or when there are low differential pressures, edge welded bellows absorb movements, decouple components, allow lead - through of items, and do volume compensation.

Stainless steel 304/316L Vacuum edge weld bellows Specifications

Bellows Type	SS304/316L CF16 Vacuum edge weld bellows for vacuum scenarios
Material	SS304/SS316L
Standard	CF Flange connection
Size Range	CF16,CF40,CF63
Length	48.5mm,63mm,65mm,76mm or as customer request
Spring rate axial	5.3N/mm
Working Pressure	Vacuum~atmosphere pressure
Lifecycles	10000
