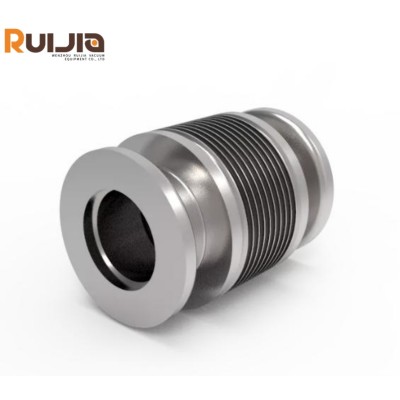

Stainless steel 304/316L Vacuum edge weld bellows for vacuum scenarios

Categories	KF Vacuum Bellows
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Bellows Type	Stainless steel 304/316L Vacuum edge weld bellows
Material	SS304/SS316L
Standard	KF Standard
Size Range	KF16,KF25,KF40
Length	32mm,35mm,40mm,45mm,50mm or as customer request
Lifecycles	10000
FOB port	Shanghai Port，Tianjing Port，Ningbo Port
Update Time	Mar 12,2025

Contact Now

Favorites

Detail Information

Stainless steel 304/316L Vacuum edge weld bellows for vacuum scenarios Feature

● Edge welded bellows serve as flexible connecting components between vacuum flanges or end fittings of various types.

● renowned for their high flexibility, are employed in various applications. They serve to absorb movements, enable decoupling, facilitate lead - through, and perform volume compensation, predominantly in vacuum scenarios or when dealing with low differential pressures.

Stainless steel 304/316L Vacuum edge weld bellows Specifications

Bellows Type	Stainless steel 304/316L Vacuum edge weld bellows for vacuum scenarios
Material	SS304/SS316L
Standard	KF Flange connection
Size Range	KF16,KF25,KF40
Length	32mm,35mm,40mm,45mm,50mm or as customer request
Spring rate axial	10.6N/mm
Working Pressure	Vacuum~atmosphere pressure
Lifecycles	10000

Product parameters

Stainless steel 304/316L Vacuum edge weld bellows Unit:mm


Size	AD	D1	D2	LC	LF	LE	HUB
KF16EWB-10	31.5	31.5	16	32.1	37.1	42.1	10
KF16EWB-20	31.5	31.5	16	36.5	46.5	56.5	20
KF25EWB-10	46	46	26	31	36	41	10
KF25EWB-20	46	46	26	33.4	43.4	53.4	20
KF40EWB-10	59	59	39	33.5	37.5	43.5	10
KF40EWB-20	59	59	39	35	45	55	20
KF40EWB-40	59	59	39	40	60	80	40
KF40EWB-50	59	59	39	42.5	67.5	92.5	50
KF40EWB-60	59	59	39	45	75	105	60
KF40EWB-80	59	59	39	50	90	130	80
