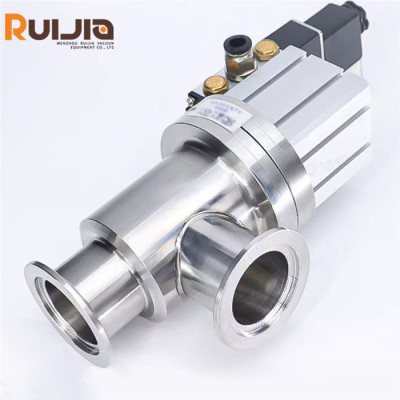

KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China

CLASSIFICATION

KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China

Categories	Vacuum Angle valves
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Size	KF16,KF25,KF40,KF50,KF63,KF80.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Temperature	-200~800℃
Helium Leak Test	1×10 -9 Pa・m³/sec or less
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China feature

●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.

●Size:Depending on specific application requirements and design specifications

●Pneumatic Angle valve series:Pneumatic L-type angle valves,Pneumatic T-type angle valves ,Pneumatic Y-type angle valve and Pneumatic Z-type angle valves.

Working condition: operating mode is pneumatic actuated and Gas source pressure:0.4-0.8Mpa.

KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China specifications

Product Name	KF Vacuum Pneumatic Angle Valves Stainless Steel Angle Valves Wholesale China
Brand	RUIJIA
Size	KF16,KF25,KF40,KF50,KF63,KF80.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
