CF Vacuum Pipe Components Fittings 5 way Crosses-Fixed Fittings Wholesale China

CLASSIFICATION

CF Vacuum Pipe Components Fittings 5 way Crosses-Fixed Fittings Wholesale China

Categories	CF Vacuum Fittings
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Size	CF16,CF35,CF63,CF100,CF150
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

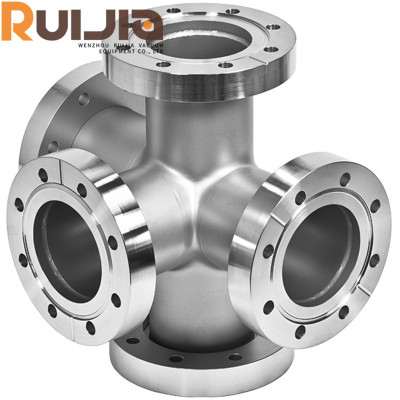

CF Vacuum Pipe Components Fittings 5 way Crosses-Fixed Fittings Wholesale China feature

●Mainly used in ultra-high vacuum systems. The connection method of 5 way crosses-fixed is suitable for applications that require high temperature baking. Its nominal diameter sizes include CF16, CF35,CF 63,CF100, CF150 and the applicable vacuum degree is up to 10 ^ -12 mbar.

●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation

●Testing:Appearance inspection, size inspection, sealing performance testing.

CF Vacuum Pipe Components Fittings 5 way Crosses-Fixed Fittings Wholesale China specifications

Product Name	CF Vacuum Pipe Components Fittings 5 way Crosses-Fixed Fittings Wholesale China
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

CF Vacuum Pipe Components Fittings 5 way Crosses-Fixed Fittings Wholesale China Unit:mm

Model No.	Material	A	B	C	D
CF16FXA	304S.S	37.5	19.05	33.8	75
CF35FXA	304S.S	62.5	38.1	69.5	125
CF63FXA	304S.S	85.7	63.5	113.6	171.4
CF100FXA	304S.S	109.5	101.6	151.6	219
CF150FXA	304S.S	139.7	152.4	202.5	279.4
