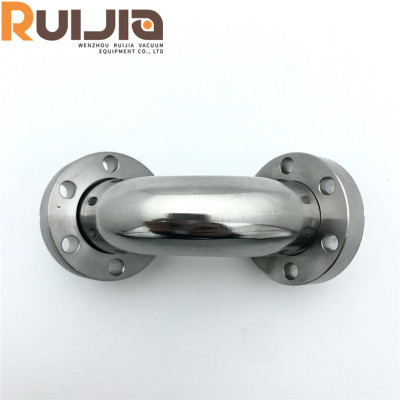

CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications

Categories	CF Vacuum Fittings
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800℃
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union
Update Time	Apr 4,2025

Contact Now

Favorites

Detail Information

CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications Feature

●Application: Suitable for ultra-high vacuum applications below 10-13 Torr, as well as maintaining stable performance in the temperature range of -196 ° C to 500 ° C.

●Packaging method: shockproof packaging materials, such as foam or bubble film, are usually used to reduce vibration and impact during transportation

●Testing:Appearance inspection, size inspection, sealing performance testing

CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications Specifications

Product Name	CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

Product parameters

CF Vacuum Flange Fittings 90°Elbows Rotatable,Stainless Steel,Suitable For Ultra-high Vacuum Applications Unit:mm

Model No.	Material	A	B	C
CR16EL90	304S.S	47.2	19.05	33.8
CR35EL90	304S.S	79.8	38.1	69.5
CR63EL90	304S.S	141.3	63.5	113.6
CR100EL90	304S.S	222.2	101.6	151.6
CR150EL90	304S.S	241.3	152.4	202.5
CR200EL90	304S.S	215.9	219.08	253.2
CR250EL90	304S.S	266.7	273.05	336.5
