ISO Vacuum Outer ring Centering ring with Viton O'ring,Used in vacuum system

CLASSIFICATION

ISO Vacuum Outer ring Centering ring with Viton O'ring,Used in vacuum system

Categories	ISO-K Centering Rings
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Size	ISO63-ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800℃
Helium Leak Test	1×10 -9 Pa・m³/sec or less
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

ISO Vacuum Outer ring Centering ring with Viton O'ring,Used in vacuum system feature

● ISO Vacuum outer ring Centering Ring with Viton O’ ring is typically used in conjunction with vacuum systems to ensure that components or parts are precisely located or centered within a vacuum chamber.

● Centering ring with Viton O’ ring Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel,Aluminium EN1.4301, EN1.4404.

●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.

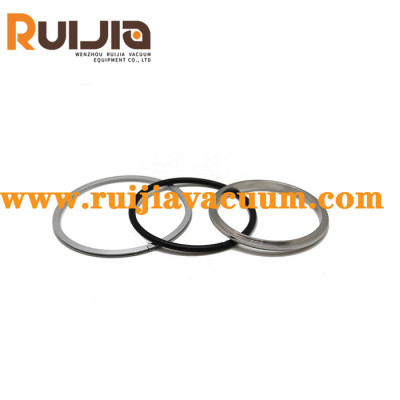

ISO vacuum outer ring center ring with viton O'ring

ISO Vacuum Outer ring Centering ring with Viton O'ring,Used in vacuum system specifications

Product Name	ISO Vacuum Outer ring Centering ring with Viton O'ring,Used in vacuum system
Brand	RUIJIA
Size	ISO63,ISO80,ISO100,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500,ISO630
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Standard	ISO Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
ISO Vacuum Centering Ring types	ISO centering ring,ISO centering ring with viton O’ring, ISO centering ring with NBR O’ring,ISO outer ring centering ring & viton O’ring

Product parameters

ISO Vacuum Outer ring Centering ring with Viton O'ring,Used in vacuum system Unit:mm

Model No.	Material C/R	Material O'Ring	A	B	C	D	E	Material O/R	O'ring Size
ISO63OCRVSA	304 S.S	Viton/NBR	67	69.6	8	3.9	94	AL	AS-337
ISO80OCRVSA	304 S.S	Viton/NBR	80	82.6	8	3.9	109	AL	AS-341
ISO100OCRVSA	304 S.S	Viton/NBR	99	101.6	8	3.9	128	AL	AS-347
ISO160OCRVSA	304 S.S	Viton/NBR	150	152.6	8	3.9	179	AL	AS-362
ISO200OCRVSA	304 S.S	Viton/NBR	210	212.6	8	3.9	238	AL	AS-371
ISO250OCRVSA	304 S.S	Viton/NBR	257.5	260.4	8	3.9	287	AL	AS-378
ISO320OCRVSA	304 S.S	Viton/NBR	312	317.3	12	5.6	344	AL	AS-454
ISO400OCRVSA	304 S.S	Viton/NBR	394	399.2	12	5.6	446	AL	AS-461
ISO500OCRVSA	304 S.S	Viton/NBR	494	500.2	12	5.6	535	AL	AS-469
ISO630OCRVSA	304 S.S	Viton/NBR	644.5	650.5	12	5.6	684.8	AL	AS-475

Model No.	Material C/R	Material O'Ring	A	B	C	D	E	Material O/R	O'ring Size
ISO63OCRVSE	304 S.S	Viton/NBR	68	70	8	3.9	94	AL	AS-337
ISO80OCRVSE	304 S.S	Viton/NBR	81	82.6	8	3.9	109	AL	AS-341
ISO100OCRVSE	304 S.S	Viton/NBR	100	102	8	3.9	128	AL	AS-347
ISO160OCRVSE	304 S.S	Viton/NBR	148	153	8	3.9	179	AL	AS-362
ISO200OCRVSE	304 S.S	Viton/NBR	210	213	8	3.9	238	AL	AS-371
ISO250OCRVSE	304 S.S	Viton/NBR	257.5	261	8	3.9	287	AL	AS-378
ISO320OCRVSE	304 S.S	Viton/NBR	312	318	12	5.6	344	AL	AS-454
ISO400OCRVSAE	304 S.S	Viton/NBR	394	400	12	5.6	446	AL	AS-461
ISO500OCRVSE	304 S.S	Viton/NBR	494	501	12	5.6	535	AL	AS-469
ISO630OCRVSE	304 S.S	Viton/NBR	644.5	650.5	12	5.6	684.8	AL	AS-475

ISO63OCRVAE	AL	Viton	68	70	8	3.9	94	AL	AS-337
ISO80OCRVAE	AL	Viton	81	82.6	8	3.9	109	AL	AS-341
ISO100OCRVAE	AL	Viton	100	102	8	3.9	128	AL	AS-347
ISO160OCRVAE	AL	Viton	148	153	8	3.9	179	AL	AS-362
ISO200OCRVAE	AL	Viton	210	213	8	3.9	238	AL	AS-371
ISO250OCRVAE	AL	Viton	257.5	261	8	3.9	287	AL	AS-378
ISO320OCRVAE	AL	Viton	312	318	12	5.6	344	AL	AS-454
ISO400OCRVAE	AL	Viton	394	400	12	5.6	446	AL	AS-461
ISO500OCRVAE	AL	Viton	494	501	12	5.6	535	AL	AS-469
ISO630OCRVAE	AL	Viton	644.5	650.5	12	5.6	684.8	AL	AS-475

Special Sizes Available Upon Request.
