CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Stainless Steel Wholesale

CLASSIFICATION

CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Stainless Steel Wholesale

Categories	CF Vacuum Flanges
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product Name	CF NIPPLE Fixed/Non-rotatable
Brand	RUIJIA
Size	CF16-CF200
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard flange
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

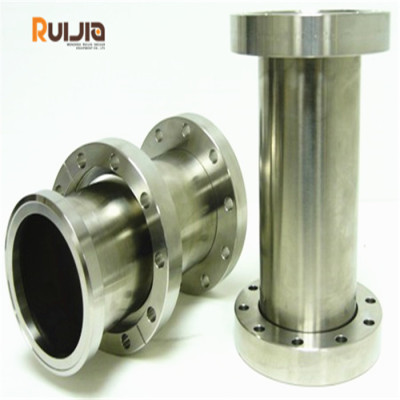

CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Wholesale feature

CF vacuum nipple fixed are mainly used in ultra-high vacuum systems,required test before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.

The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.

When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.

CF Flanges Fittings Half Nipples Vacuum Nipple-Fixed Wholesale specifications

Product Name	Flanges Fittings Half Nipples Vacuum Nipple-fixed Wholesale
Brand	RUIJIA
Size	CF16-CF200
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Surface	Sand Blasting or Polished Surface

Product parameters

CF Flanges Fittings Half Nipples Vacuum Nipple-fixed Wholesale Unit:mm

Model No.	Material	A	B	C
CF16N	S.S.304	33.8	76	19.05
CF35N	S.S.304	69.5	126	38.1
CF63N	S.S.304	113.6	210	63.5
CF100N	S.S.304	151.6	270	101.6
CF150N	S.S.304	202.5	334	152.4
CF200N	S.S.304	253.2	334	203.2
