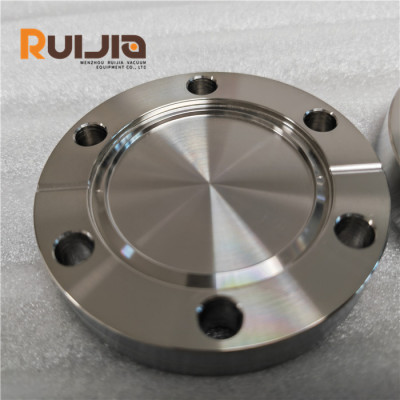

CF Vacuum Nonrotatable Blank Flanges Stainless Steel

CLASSIFICATION

CF Vacuum Nonrotatable Blank Flanges Stainless Steel

Categories	CF Vacuum Flanges
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product Name	CF Vacuum Nonrotatable blank flanges
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF300,CF350
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

CF Vacuum Nonrotatable Blank Flanges feature

● Used in the fields of physics, chemistry, and engineering research.

● Plastic flange protective cap is included to avoid flange scratching during transportation

●Precision machining, durable, high vacuum without side leakage

●CF vacuum flanges come in various sizes and shapes(Nonrotatable blank flange and tapped bolt holes,rotatable blank flange and tapped bolt holes) to accommodate different system configurations.

CF Vacuum Nonrotatable Blank Flanges specifications

Product Name	CF Vacuum Nonrotatable blank flanges Stainless Steel
Brand	RUIJIA
Size	CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF300,CF350.
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF Vacuum flange types	CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange

Product parameter

CF Vacuum Nonrotatable Blank Flanges Stainless Steel Unit:mm

Model No.	Material	A	B	C*No	P.C.D
CF16B	304SS/316SS	33.8	7.5	4.4*6	26.9
CF35B	304SS/316SS	69.5	12.7	6.7*6	58.7
CF63B	304SS/316SS	113.6	18	8.4*8	92.1
CF100B	304SS/316SS	151.6	20	8.4*16	130.3
CF150B	304SS/316SS	202.5	22	8.4*20	181
CF200B	304SS/316SS	253.2	24.7	8.4*24	231.8
CF250B	304SS/316SS	336.5	28.5	10.3*30	306.5
CF300B	304SS/316SS	355.6	28.5	10.3*30	325.7
CF350B	304SS/316SS	419.1	28.5	10.3*36	388.9

CF Vacuum Nonrotatable -Tapped Bolt Holes blank flanges Unit:mm

Model No.	Material	A	B	C*No	P.C.D
CF16BTAP	304SS/316SS	33.8	7.5	M4*6	26.9
CF35BTAP	304SS/316SS	69.5	12.7	M6*6	58.7
CF63BTAP	304SS/316SS	113.6	18	M8*8	92.1
CF100BTAP	304SS/316SS	151.6	20	M8*16	130.3
CF150BTAP	304SS/316SS	202.5	22	M8*20	181
CF200BTAP	304SS/316SS	253.2	24.7	M8*24	231.8
CF250BTAP	304SS/316SS	336.5	28.5	M10*30	306.5
CF300BTAP	304SS/316SS	355.6	28.5	M10*30	325.7
CF350BTAP	304SS/316SS	419.1	28.5	M10*36	388.9

CF rotatable blank flange Unit:mm

Model No.	Material	A	B	C*No	P.C.D
CR16B	304SS/316SS	33.8	7.5	4.4*6	26.9
CR35B	304SS/316SS	69.5	12.7	6.7*6	58.7
CR63B	304SS/316SS	113.6	18	8.4*8	92.1
CR100B	304SS/316SS	151.6	20	8.4*16	130.3
CR150B	304SS/316SS	202.5	22	8.4*20	181
CR200B	304SS/316SS	253.2	24.7	8.4*24	231.8
CR250B	304SS/316SS	336.5	28.5	10.3*30	306.5
CR300B	304SS/316SS	355.6	28.5	10.3*30	325.7
CR350B	304SS/316SS	419.1	28.5	10.3*36	388.9

CF Vacuum rotatable -Tapped Bolt Holes blank flanges Unit:mm

Model No.	Material	A	B	C*No	P.C.D
CR16BTAP	304SS/316SS	33.8	7.5	M4*6	26.9
CR35BTAP	304SS/316SS	69.5	12.7	M6*6	58.7
CR63BTAP	304SS/316SS	113.6	18	M8*8	92.1
CR100BTAP	304SS/316SS	151.6	20	M8*16	130.3
CR150BTAP	304SS/316SS	202.5	22	M8*20	181
CR200BTAP	304SS/316SS	253.2	24.7	M8*24	231.8
CR250BTAP	304SS/316SS	336.5	28.5	M10*30	306.5
CR300BTAP	304SS/316SS	355.6	28.5	M10*30	325.7
CR350BTAP	304SS/316SS	419.1	28.5	M10*36	388.9

Special Sizes Available Upon Request.

Assembly Instructions for CF Flanges

1.Apply a small amount of high temperature anti-seize compound to the bolt threads.

2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.

3. Using clean, lint free gloves, unpack gasket.

4. Place gasket in the knife edege counterbore of nonrotatable flange.

5. Align the mating hole pattern and leak test grooves.

6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.

7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
