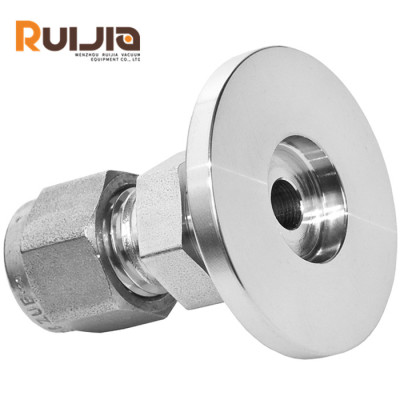

KF to Swagelok Adaptor Stainless Steel
KF to Swagelok Adaptor Stainless Steel
| Categories | KF to Swagelok Adaptor |
|---|---|
| Brand | RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER |
| Product Name | Vacuum fittings KF swagelok adaptor |
| Size | KF16SWA6,KF16SWA13,KF25SWA6,KF25SWA13,KF40SWA6,KF4 |
| Seal material | Viton,Silicone,Buna-N seal |
| Material | SS304, SS316L |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Update Time | Dec 28,2024 |
Detail Information
KF to Swagelok Adaptor Stainless Steel feature
advantage
●Application:suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
●Size:Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
KF to Swagelok Adaptor Stainless Steel specifications
| Product Name | KF Vacuum flange fittings Tees |
|---|---|
| Product Name | Vacuum fittings KF swagelok adaptor |
| Brand | RUIJIA |
| Size | KF16SWA6,KF16SWA13,KF25SWA6,KF25SWA13,KF40SWA6,KF40SWA13,KF50SWA6,KF50SWA13 |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF-Swagelok Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
KF to Swagelok Adaptor Stainless Steel parameters
Vacuum fittings KF swagelok adaptor Unit:mm
| Model No. | Material | A | B | C | VCR |
| KF16SWA6 | 304S.S | 30 | 4.8 | 36.6 | 1/4'' |
| KF16SWA13 | 304S.S | 30 | 10.8 | 45 | 1/2'' |
| KF25SWA6 | 304S.S | 40 | 4.8 | 36.6 | 1/4'' |
| KF25SWA13 | 304S.S | 40 | 10.8 | 54.3 | 1/2'' |
| KF40SWA6 | 304S.S | 55 | 4.8 | 36.6 | 1/4'' |
| KF40SWA13 | 304S.S | 55 | 10.8 | 54.3 | 1/2'' |
| KF50SWA6 | 304S.S | 75 | 4.8 | 36.6 | 1/4'' |
| KF50SWA13 | 304S.S | 75 | 10.8 | 54.3 | 1/2'' |
Special Sizes Available Upon Request.
