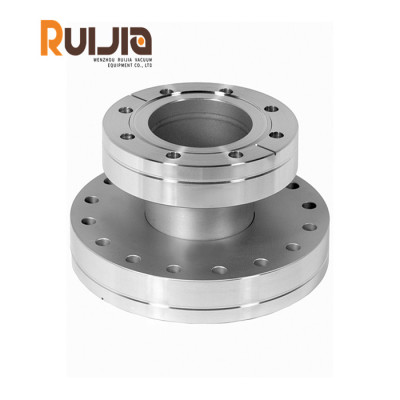

Vacuum CF Reducing Adaptor-Fixed China Manufacture

Vacuum CF Reducing Adaptor-Fixed China Manufacture

Vacuum CF Reducing Adaptor-Fixed China Manufacture
Vacuum CF Reducing Adaptor-Fixed China ManufactureVacuum CF Reducing Adaptor-Fixed China ManufactureVacuum CF Reducing Adaptor-Fixed China ManufactureVacuum CF Reducing Adaptor-Fixed China ManufactureVacuum CF Reducing Adaptor-Fixed China Manufacture
CategoriesVacuum Reducing Adaptor
BrandRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product NameVacuum CF Reducing adaptor-Fixed
SizeCF35RA16,CF63RA16,CF63RA35,CF100RA35,CF100RA63,CF1
Seal materialViton,Silicone,Buna-N seal
MaterialSS304, SS316L
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update TimeDec 28,2024
Detail Information
Vacuum CF Reducing Adaptor-Fixed feature
advantage
●Application: Suitable for various application scenarios that require high vacuum operation, they can withstand high temperature baking, and the applicable vacuum degree can reach up to 10-12 mbar.
●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing


Vacuum CF Reducing Adaptor-Fixed specifications
Product Name KF Vacuum flange fittings Tees
Product Name Vacuum CF Reducing adaptor-Fixed
Brand RUIJIA
Size CF35RA16,CF63RA16,CF63RA35,CF100RA35,CF100RA63,CF150RA35,CF150RA63,CF150RA63
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pam³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Flange Adaptor types ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
Vacuum CF Reducing Adaptor-Fixed parameters
Vacuum CF Reducing adaptor-Fixed                                                                                                                                           Unit:mm
Model No. Material A B C D
CF35RA16 304S.S 69.5 33.8 76.2 19.05
CF63RA16 304S.S 113.6 33.8 76.2 1905
CF63RA35 304S.S 113.6 69.5 76.2 38.1
CF100RA35 304S.S 151.6 69.5 76.2 38.1
CF100RA63 304S.S 151.6 113.6 76.2 63.5
CF150RA35 304S.S 202.5 69.5 76.2 38.1
CF150RA63 304S.S 202.5 113.6 76.2 63.5
CF150RA100 304S.S 202.5 151.6 76.2 101.6
Special Sizes Available Upon Request
