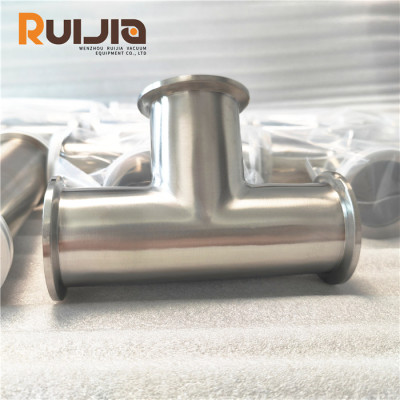

KF Vacuum Flange Fittings Tees

CLASSIFICATION

KF Vacuum Flange Fittings Tees

Categories	KF Vacuum Fittings
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product Name	KF Vacuum flange fittings Tees
Size	KF16,KF25,KF40,KF50
Seal material	Viton,Silicone,Buna-N seal
Material	SS304, SS316L
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

KF Vacuum Flange Fittings Tees feature

advantage

●Its application is not limited to the branching and merging of pipelines, but can effectively split the fluid in one pipeline into two or merge the fluids in two pipelines into one.

● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

● Regarding testing, the testing items for vacuum tees include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, and corrosion resistance testing

KF Vacuum Flange Fittings Tees specifications

Product Name	KF Vacuum flange fittings Tees
Brand	RUIJIA
Size	KF16,KF25,KF40,KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

KF Vacuum Flange Fittings Tees parameters

KF Vacuum flange fittings Tees Unit:mm

Model No.	Material	A	B	C	D	Available Area
KF16TA	304S.S	38.3	19.05	30	76.6	U.S.A
KF25TA	304S.S	51.4	25.4	40	102.8	U.S.A
KF40TA	304S.S	61	38.1	55	122	U.S.A
KF50TA	304S.S	80	50.8	75	160	U.S.A
KF16TE	304S.S	40	19.05	30	80	Europe
KF25TE	304S.S	50.8	25.4	40	100	Europe
KF40TE	304S.S	65	38.1	55	130	Europe
KF50TE	304S.S	80	50.8	75	140	Europe
