CF Vacuum Cubes with Metric thread China

CLASSIFICATION

CF Vacuum Cubes with Metric thread China

Categories	CF Vacuum Fittings
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product Name	CF Vacuum 6-way cubes Metric Thread
Size	CF16,CF35,CF50,CF63,CF100,CF150,CF200
Seal material	Oxygen free copper, silver plated copper
Material	SS304, SS316L
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

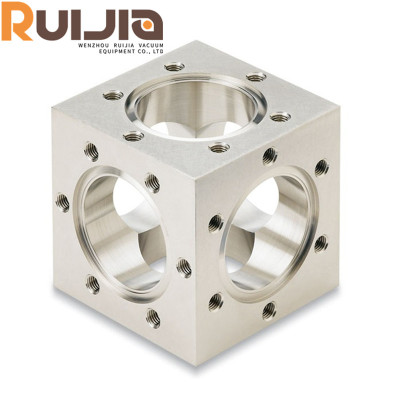

CF Vacuum Cubes with Metric Thread feature

advantage

●Applied to various occasions that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, etc

●Thread type:Metric Thread, the thread size have M4,M6,M8.

●Test:Cleanliness testing, packaging environment testing, pressure testing, temperature testing

CF Vacuum Cubes with Metric Thread specifications

Product Name	CF Vacuum 6-way cubes Metric Thread
Brand	RUIJIA
Size	CF16,CF35,CF50,CF63,CF100,CF150,CF200
Material	SS304, SS316L
Seal material	Oxygen free copper, silver plated copper
Standard	CF Standard
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
CF flange fittings types	CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.

CF Vacuum Cubes with Metric Thread parameters

CF Vacuum 6-way cubes Metric Thread Unit:mm

Model No.	Flange Size	Material	A	B	Thread Size	Thread Depth
CF16CUM	CF16	304S.S	17.25	15.7	M4	6
CF35CUM	CF35	304S.S	35.05	38.1	M6	9
CF50CUM	CF50	304S.S	43	50.8	M8	9
CF63CUM	CF63	304S.S	56.65	63.5	M8	12
CF100CUM	CF100	304S.S	76.2	102	M8	12
CF150CUM	CF150	304S.S	101.6	152.4	M8	12
CF200CUM	CF200	304S.S	127	203.2	M8	12
