High Vacuum Chambers Stainless Steel China Manufacture

CLASSIFICATION

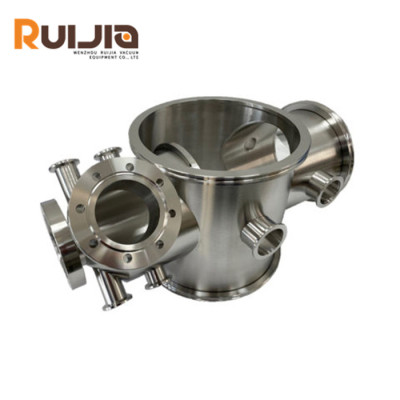

High Vacuum Chambers Stainless Steel China Manufacture

Categories	Vacuum Chambers
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Product Name	High Vacuum Chambers stainless steel 304/316
Finish	sandblasted, Electric polishing, manual polish
Seal material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Dec 28,2024

Contact Now

Favorites

Detail Information

High Vacuum Chambers Stainless Steel feature

advantage

●Application: Available in standard NW or CF ports, flanges, and related accessories, Vacuum performance down to 1 x 10-6Torr with the appropriate vacuum pumps

●Size: According to good vacuum practice and customers' demands.

●Testing: Helium leak tested for quality assurance and can be adapted to technical requirements, can be equipped with the necessary accessories

High Vacuum Chambers Stainless Steel specifications

Product Name	High Vacuum Chambers stainless steel 304/316
Brand	RUIJIA
Size	According to customers demand.
Material	SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material	Viton,Silicone,Buna-N seal
Finish	sandblasted, Electric polishing, manual polish
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Shape	Spherical, Cylindrical, Box and rectangular, Bell jar, D-shape, Custom
Vacuum Chamber types	high vacuum (HV) chambers. Design, construction, manufacturing and all inspections are done according to good vacuum practice and customers demands.
