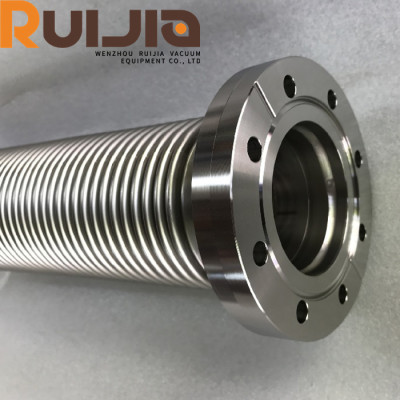

CF Compressible Bellows Connections-One Flange Rotatable CF vacuum bellows CF16-CF100 SS304/316L

CLASSIFICATION

Categories	CF Vacuum Bellows
Brand	RUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
Bellows Type	Vacuum CF Compressible Bellows Connections-One Fla
Standard	CF Flange connection
Size Range	CF16,CF35,CF63,CF100
Wall Thickness	0.2mm,0.25mm,0.3mm
Temperature	-200~800℃
FOB port	Ningbo Port/Shanghai Port/Shenzhen Port/Qingdao Port/Tianjin Port
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Dec 28,2024

Detail Information

CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L feature

advantage

● Soft, flexible, easy to bend, vibration absorbing

● Helium leakage test passed before shipping

● Plastic flange protective cap is included to avoid flange scratching during transportation

●Delicate Welding to ensure integrity and reliability

CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L specifications

Bellows Type	Vacuum CF Compressible Bellows Connections-One Flange Rotatable
Material	Bellows SUS304, SUS316L
Material	Flange SUS304, SUS316L
Standard	CF Flange connection
Size Range	CF16,CF35,CF63,CF100
Length	150mm,180mm,250mm,270mm or as customer request
Wall Thickness	0.2mm,0.25mm,0.3mm
Elasticity of bellows	40%
Temperature	-200~800℃
Working Pressure	Vacuum~atmosphere pressure
Leakage rate	1×10 -9 Pa・m³/sec or less

Product parameters

CF Flexible Hoses-One Flange Rotatable vacuum hoses bellows CF16-CF100 SS304/316L

					Unit:mm
Item No.	Flange Size	Material	A	B	C
CF16FXC150R	CF16	SS304	33.8	150	130
CF35FXC180R	CF35	SS304	69.5	180	160
CF63FXC210R	CF63	SS304	113.6	210	190
CF100FXC270R	CF100	SS304	151.6	270	250
**Material SS316,Customized length is acceptable upon request..
